Section IV: Beyond to Mars and the Asteroids


This section extends the basic infrastructure developed to support small outposts at L1 and the lunar surface for the purpose of expanding a human presence into the inner solar system, visiting the Earth-Sun Lagrange points (L1 and L2), Near Earth Asteroids (NEA) and Mars.

Once the infrastructure detailed in Section III is in place, human spaceflight beyond the earth-moon system requires very little additional technology or hardware development.  This section describes vehicle designs and mission profiles based on Section III developments with the probable addition of a Prometheus Program derived 100kw electric nuclear power plant.  For the purposes of this blueprint, this device is assumed to mass 6mt, including power interfaces and shielding suitable for crewed operations.  The nuclear plant is suitable for low-impulse orbital transfers (assumed in this document to be xenon ion-based at 3,800 isp - essentially 20+ Boeing 25cm XIPS thrusters) and for power generation for a Mars surface station.  Use of solar power generation is an alternative to this power source at comparable weight, but it will require 320 m2 surface area and constant sunlight, possible for deep space propulsion, but questionable for extended Martian surface operations.  And obviously, the effectiveness of a solar-based solution will be degraded (by over 50%) at Mars orbit, where most of the propulsive energy envisioned in this section is needed.


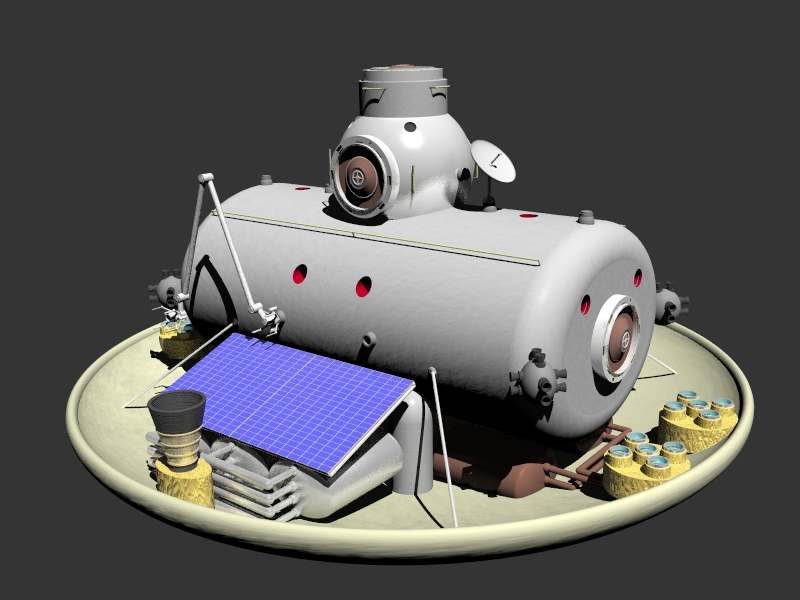

Interplanetary Transfer Vehicle

The base vehicle for operations beyond the moon is the Interplanetary Transfer Vehicle (ITV).  It will carry a crew of three for a period of up to 1,000 days in a space comparable to that of the completed lunar base.  Assembled at L1 by two "Heavy" launches, the ITV carries both "Quick" (Aquila CH4/O2) engines to provide 600 m/s impulses to leave L1 in short order or to quickly break or circularize orbits as necessary, and "Cruise" engines, providing over 3,000 m/s delta v over a period of months via nuclear powered ion propulsion.  The base vehicle is described below.

Basic ITV mt delta v ISP Notes
Actual Mass 36.972
Crew module (for 3) 5.400     Includes living quarters, workstations and EVA suits
Cruise Engines 0.189     9 kg per 4.5 kW XIPS 25 cm thruster - 20/21 active - 3.3N total thrust
Cruise fuel -3000 m/s 3.000

3,151

3800

Xenon
Cruise fuel tanks 0.090     3% fuel mass
Shielded Reactor 6.000     100 kW electric- half reactor, half shield - solar has equivalent total mass
Quick Engines (x2) 0.240     2,000 kgf thrust each - based on RL10 design
Quick Fuel - 600m/s 5.500

600

380

CH4/O2 Fuel for compact storage and common cooling
Quick fuel tanks 0.275     5% fuel mass
RCS Thrusters (x32) 0.128     100 N thrusters
RCS Fuel - 50m/s 0.600

51

319

RP-1/H2O2 Fuel
Avionics 0.400     Controls, computers, communications
Main Airlock and Doors 0.500     Separately pressurized with docking and crew access doors
Solar Electric System 0.250     16m2 at .25% = 5kW max - backup power system for life support
Aerobrake heat shield 4.050     15% shielded mass
Gyrostabilizers 0.100
Manipulator arm 0.150
Consumables 9.900     3.3kg day/crew: 1000 day supply
Margin/Cargo 0.200     Spares

This craft, with a full load of 19.2mt of consumables launched by two "Heavy" boosters, is capable of a Mars orbital mission, using 500 "Quick" m/s to leave L1 on a 259 day Hohmann transfer orbit to Mars.  At Mars, it will use its aeroshield and some "Cruise" fuel to establish orbit around Mars for 455 days.  During the last 200 days in orbit, the ITV will slowing build up "Cruise" velocity for a 259 day return to Earth, where the aeroshield would help establish an elliptical orbit suitable for an Aquila rendezvous to return the crew to Earth.  Additional "Cruise" fuel transferred from the Aquila would allow the ITV to return to L1 within a matter of months, ready for refitting to support a new mission.

Obviously, a pure orbital mission to Mars would be of limited utility, though it may allow the remote control of automated rovers on the surface.  The configuration above is best suited to pure deep space missions, where a single "Heavy" cargo launch could provide "Cruise" fuel and supplies for a leisurely 6-12 month journey to and from the Earth-Sun L1 or L2 points for the purpose of satellite repair or upgrading.  This mission profile is the best method for maintaining proposed systems like the Webb telescope.


Asteroid ITV Variant

An obvious extension of the Earth-Sun LaGrange mission profile would include a Utility Pod with the ITV to allow for the approach and landing on small (less than 50 km diameter) asteroid bodies.  The 3mt Pod attached to this profile would have been launched as part of the two "Heavy" missions that delivered the 17.4mt base ITV to L1.

ITV - with Pod mt delta v ISP Notes
Actual Mass 40.725
Core Vehicle 17.407     ITV base from above
Cruise fuel -3000 m/s 3.160

3,008

3800 Xenon
Cruise fuel tanks 0.095     3% fuel mass
Quick Fuel - 600m/s 6.060

600

380 CH4/O2 Fuel for compact storage and common cooling
Quick fuel tanks 0.303     5% fuel mass
RCS Fuel - 50m/s 0.600 319 RP-1/H2O2 Fuel
Consumables 9.900     3.3kg day/crew: 1000 day supply
Pod 3.000     Loaded
Margin/Cargo 0.200     Spares

Fuel and consumables 19.920

Supplied by two "Heavy" launches, the vehicle described above could be suitable for a number of 1-3 year missions to Near Earth Asteroids or a Mars Moon mission, an extension of the Mars Orbital Mission described above, with excursions to Phobos and Deimos from the Pod as the ITV spins slowly out of Mars orbit.


Mars Transfer Vehicle

The eventual goal for the ITV is to support a Mars surface expedition. This endeavor will require the transport of a modified Lander to transfer the crew to and from the Martian surface and a Mars Habitat complex, delivered to the Martian surface to support a long term surface occupation. The Mars Transfer Vehicle replaces the Pod with a Mars-modified Lander.

ITV with Mars Lander mt delta v ISP Notes
Actual Mass 59.298
Core Vehicle 17.407
Cruise fuel -3000 m/s 3.330

3,016

3800

Xenon
Cruise fuel tanks 0.100     3% fuel mass
Quick Fuel - 600m/s 8.820

600

380

CH4/O2 Fuel for compact storage and common cooling
Quick fuel tanks 0.441     5% fuel mass
RCS Fuel - 50m/s 0.600

32

319

RP-1/H2O2 Fuel
Consumables 9.900     3.3kg day/crew: 1000 day supply
Aeroshield increase 2.000     Widened to support Lander
Lander 16.500     Loaded
Margin/Cargo 0.200     Spares
Return Mass 42.798     No Lander

Fuel and consumables 22.850

Four "Heavy" missions would deliver the Lander and outfit the ITV to carry a larger aeroshield and support the larger mission mass.

Note that the "Cruise" delta V is computed on return mass (no Lander) and actually supports a considerable margin, since at least nine months of consumables will be expended before the Trans Earth impulse begins.  Consumables for a full 1,000 days support the contingency of a failed Mars Habitat delivery or a Prometheus failure prior to Mars aerobrake that would require following a free return to Earth.  It also allows the crew to hold out in Mars orbit until the next Hohmann window in the event of failures that prevent a return to Earth.

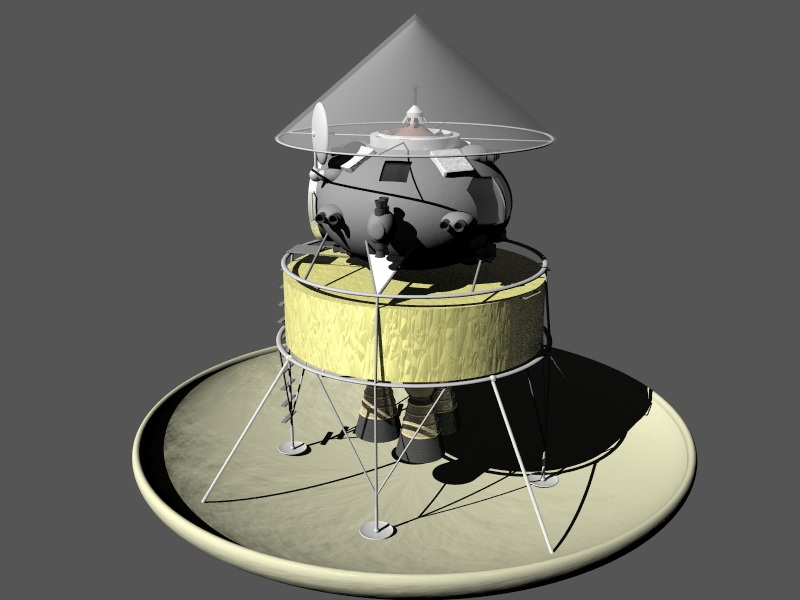

Mars Modified Lander

The Lunar Lander requires only minor modifications to support a Mars mission.  An aerobrake shield and parachute system will negate the need for most of the landing impulse, with under 100 m/s of delta v allocated for a deorbit burn and 400 m/s allocated for final touchdown near the Mars Habitat landing site.  A nose cone shroud is the only addition for the return to orbit, with 4,450 m/s delta v allocated to achieving Mars orbit and a rendezvous with the Mars ITV.

Mars Lander mt delta v ISP Notes
Actual Mass 16.500
Airframe 0.550     Assumes external tanks
Main Tanks 0.400     Fuel Tanks - 4% mass
OMS Engines (x3) 0.360     2,000 kgf thrust each - based on RL10 design
OMS Fuel - 5000m/s 10.000 4,950 380 CH4/O2 Fuel for compact storage and common cooling
RCS Thrusters (x28) 0.112     100 N thrusters
RCS Fuel - 100m/s 0.425 82 319 RP-1/H2O2 Fuel
Landing Gear 0.250     Under 2% loaded mass
Avionics 0.250     Controls, computers, communications
Airlock and Doors 0.500     Part of Airframe
Crew Stations (x3) 0.300     Occupied weight including personal items
EVA Suits (x3) 0.195     Orlan based or EMU based - 65kg each
Fuel Cell Units (X2) 0.050     10kg/kw 5kw Max
Fuel Cell Fuel 0.090     30kg/day - 3 days full power - 6 at half power: produces onboard H2O
Nose Cone 0.100
Margin/Cargo 0.018     Consumables and spares
Aeroshield 2.400
Parachutes 0.500
Ascent Mass* 13.600

*500 m/s fuel used for deorbit and final descent. 4450 m/s for LMO.

Note that ascent mass is used to calculate the delta v potential of the vehicle, as only the deorbit burn will occur before the jettisoning of the aeroshield and parachutes.

The Lander is not intended for extended operations, but could attempt a "sprint" three day surface mission if the Mars Habitat was lost or damaged during its Mars landing.  Stripped of its main engines, tanks and structure and with RCS fuel replenished, the Lander could also support short excursion to the Martian moons as the ITV slowly spirals out from Mars on its return to Earth.

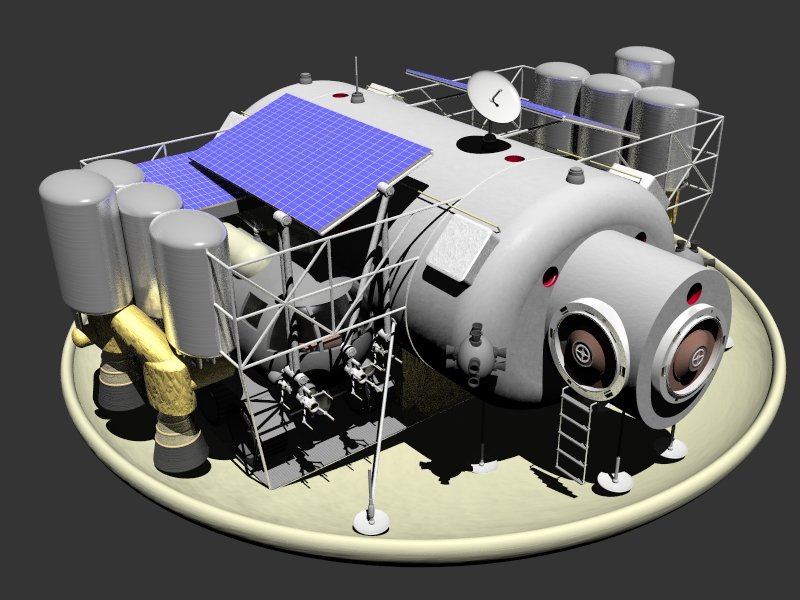

Mars Habitat

Martian surface crews will use the Mars Habitat for extended exploration of the planet's surface. Essentially a modified ITV equipped with a Rover and additional CH4/O2 engines and equipment for landing, it serves as shelter and lab for a crew of three Martian explorers.

Mars Habitat/transport module mt delta v ISP Notes
Actual Mass 42.463
Crew module (for 3) 5.500     Includes living quarters, workstations and EVA suits
Rover 4.000     Loaded
Shielded Reactor 6.000     100 kW electric- half reactor, half shield - solar has equivalent total mass
Quick Engines (x6) 0.720     2,000 kgf thrust each - based on RL10 design
Quick Fuel - 1000m/s 10.000

1,000

380

CH4/O2 Fuel for compact storage and common cooling -boost and landing
Quick fuel tanks 0.500     5% fuel mass
RCS Thrusters (x32) 0.128     100 N thrusters
RCS Fuel - 100m/s 1.350

101

319

RP-1/H2O2 Fuel
Avionics 0.400     Controls, computers, communications
Main Airlock and Doors 0.500     Separately pressurized with docking and crew access doors
Solar Electric System 0.500     32m2 at .25% =7 kW max - backup power system for life support
Aerobrake heat shield 4.320     12% shielded mass
Parachutes 1.000
Consumables 7.425     3.3kg day/crew: 750 day supply
Margin/Cargo 0.120     Spares
Fuel and consumables 18.895

Four "Heavy" launches will deliver and supply the Habitat at L1 from where it would begin its independent voyage to Mars within the same window of the Mars ITV launch.  The six "Quick" engines provide initial impulse for departing L1 and for braking during final descent at Mars.  The reactor will provide power, even through month-long dust storms, and aid a quick recharge of the Rover fuel cell system.  Supplied for over two years, it could support a crew until the next Hohmann window even if their Lander were damaged on descent or failed to start for ascent.

A surface mission as envisioned in this section would last only 7-10 months, with the crew ascending to Mars orbit as the ITV began to spiral out for its return voyage.  As such, a subsequent expedition could make use of an existing Habitat and its supplies as their base if their Habitat were damaged or destroyed en route.


Timetable

The following chart outlines a ten year interplanetary program utilizing two ITV vehicles and four Mars Landers and Habitats. It envisions six missions: one to an Earth-Sun LaGrange Point, one to a Near Earth Asteroid and four to the surface of Mars.

Schedule Launches Year per year Notes
ITV with pod 2 1

4


Crew 1
Test mission (sun L1/2) 1 180-270 days Ion only
Return ITV 1 2

4


Crew 1
Asteroid mission 2 up to 1000 days
Return ITV 1 3

5


Prep Mars hab 4
Fly/prep Mars Lander 2 4

5

with some ITV supplies too
Fuel for ITV/lander 2 and supplies
Crew to Mars 1 Expedition #1
Second ITV 2 5

6


Prep Mars hab 4
Fly/prep Mars Lander 2 6

5

with some ITV supplies too
Fuel for ITV/lander 2 and supplies
Crew to Mars 1 Expedition #2
Return ITV #1 1 7

5


Prep Mars hab 4
Fly/prep Mars Lander 2 8

5

with some ITV supplies too
Fuel for ITV/lander 2 and supplies
Crew to Mars 1 Expedition #3
Return ITV #2 1 9

5


Prep Mars hab 4
Fly/prep Mars Lander 2 10

5

with some ITV supplies too
Fuel for ITV/lander 2 and supplies
Crew to Mars 1 Expedition #4

Including the final return of Mars Expedition #4 in Year 13, this plan requires 50 "Heavy" launches, though never more than 6 per year, comparable to the lunar program detailed in Section III.  Ideally, Year 1 of this plan will correspond to the year 2013, with the first Mars Expedition occurring in 2016 (Year 4). All crew and "Return ITV" launches will use an Aquila spaceplane for transfer.

Expanded Operations

The above plan for Section IV illustrates a minimum interplanetary program aimed at delivering four crews to Mars. Additional ITV vehicles can support continuing LaGrange and Near Earth Asteroid Missions.  With some modifications, it could support a Venus orbital mission, though not a surface mission to Mercury - with no atmosphere to provide braking, the total delta v requirements would bee too high for all but a flyby mission and even that would involve the risk of a very high radiation exposure for the crew.

Operations after the tenth year of this Section fall outside the scope of this blueprint.  Hopefully a nuclear thermal rocket solution or an advanced plasma/fusion drive can replace both the "Quick" and "Cruise" engines adopted for this plan and larger expeditions can depart from L1 to explore the inner solar system and to continue the exploration of Mars.
